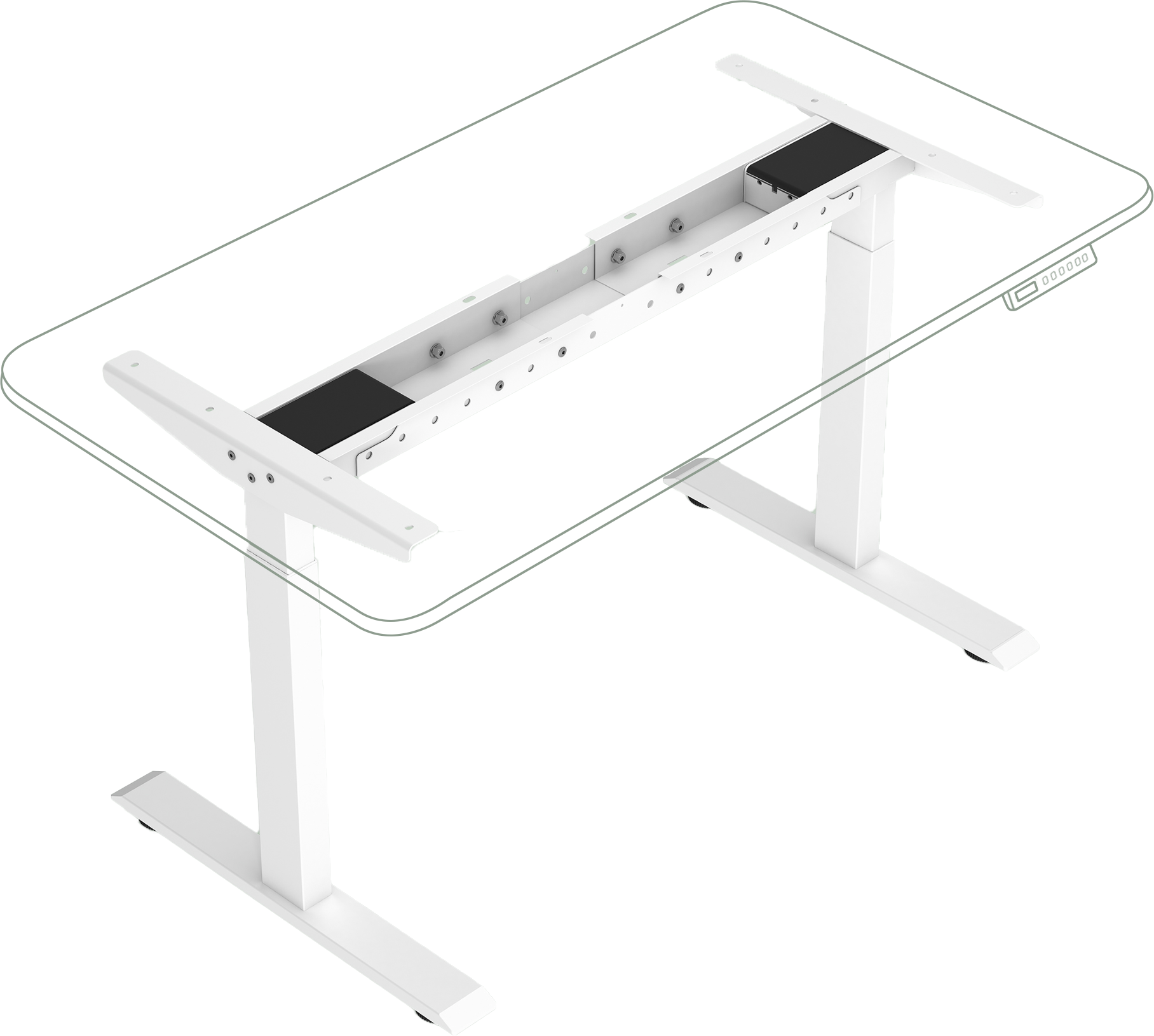

Home Basic Series

Solid performance for essential needs.

Ideal for daily home and office use with stable core functions and exceptional cost-performance.

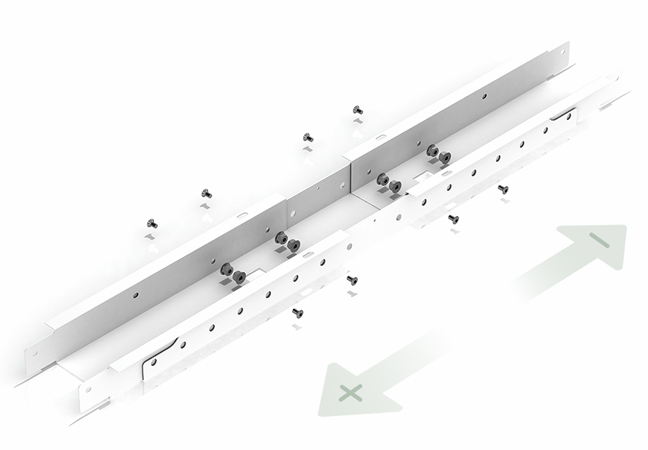

    The Basic version offers a reliable and cost-effective height-adjustable solution, perfect for standard home offices or workstations. Its sturdy two-stage rectangular column and 100kg capacity provide dependable support for everyday setups. With a practical height range (690-1190mm) and a compact frame size (1000-1500mm width), it delivers core functionality—stable lifting at 25mm/s and a 500mm stroke—backed by a 5-year warranty, making it an intelligent entry point into ergonomic workspaces.



    Specifications



    While we offer these three distinct versions (Basic, Standard, and Ultra) to illustrate standardized configurations with clearly defined performance tiers, it is important to emphasize that our product philosophy is centered on flexibility and customization.



    These models serve as convenient starting points, each highlighting a specific combination of components and capabilities—such as lifting speed, load capacity, column design, and stability level. However, our system is fundamentally modular. Clients are not limited to these predefined packages. Instead, they can freely mix and match components to tailor a desk that precisely aligns with their unique usage scenarios.



    Specifications Home Basic Series Home Standard Series Home Ultra Series
    Height Intervals 690-1190mm(±5mm) 600-1250mm(±5mm) 670-1250mm(±5mm)
    Frame Size 1000-1500mm 1100-1800mm 1100-1800mm
    Tabletop Dimensions(width) 1000-1600mm 1100-2000mm 1100-2000mm
    Tabletop Dimensions(depth) 600-700mm 600-700mm 600-700mm
    Lifting Speed 25mm/s 40mm/s 40mm/s
    Lfiting Capacity 100kg 120kg 150kg

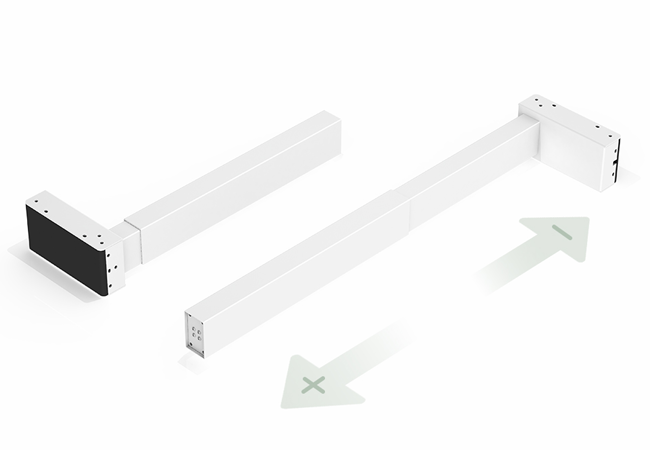

    Stroke Length 500mm 650mm 580mm
    Sound Level <48dB/<38dB <48dB/<38dB <48dB/<38dB
    Color Range Black/White/Customized Black/White/Customized Black/White/Customized

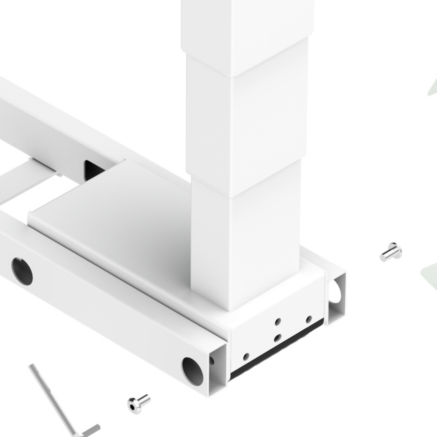

    Lifting Colum Rectangular 75*45mm, 2stages Rectangular 80*50mm, 3stages Cycle Ø70mm, 3stages
    Duty Cycle 10%; 2min.On/18min.Off 10%; 2min.On/18min.Off 10%; 2min.On/18min.Off
    Stability Level ★★★ ★★★★ ★★★★★★
    Warranty 5 years 5 years 5 years

    For example:

    – A customer may prioritize speed and choose to upgrade the motor for faster operation.

    – Another might require maximum stability and opt for reinforced frames and heavy-duty lifting columns.

    – Tabletop dimensions, control systems, finishes, and accessory integrations can also be customized beyond the standard specifications.



    Although selecting a standard configuration ensures a shorter delivery cycle and proven performance balance, our deeper commitment is to 100% satisfy your uncompromising business needs. Whether you are outfitting a home office, a collaborative workspace, or a specialized professional environment, we work with you to engineer a solution that fits perfectly—not just adequately.







    TableTop

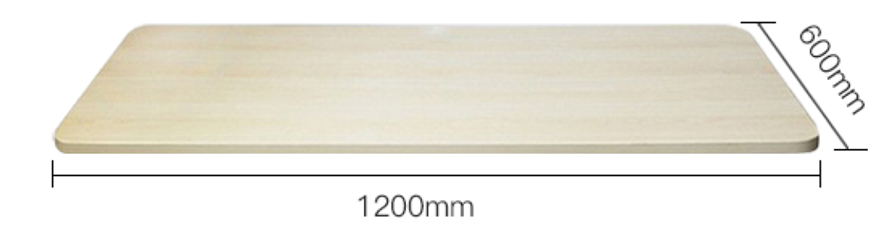

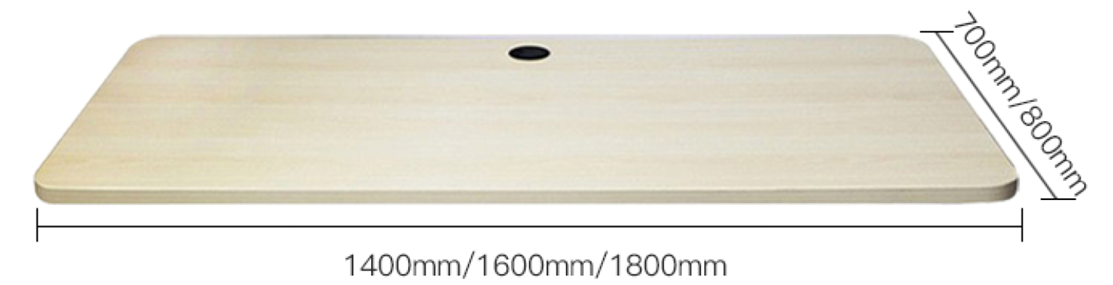

    Our standing desks come tabletop-free as standard, with a flexible custom tabletop service built to align perfectly with your local customers’ unique needs and usage habits. We offer a full range of mainstream standard sizes (1200mm*600mm, 1400/1600/1800mm*700/800mm) that fit regional workspace dimensions, plus diverse finish options including white, black, maple, logs and walnut to match local decor aesthetics and popular trends. Whether for custom sizes, localized color preferences or region-specific usage demands, our tailored solutions let you deliver perfectly matched products to your local market, helping you capture more local demand and boost your competitive edge in the target region.



    Various panel sizes optional:



    Tabletop Base Size
    1400mm*700mm;1400mm*800mm;
    1600mm*700mm;1600mm*800mm;
    1800mm*700mm;1800mm*800mm;
    1200mm*600mm



    Would you like to know more?







    Handset

    Command Your Height, Capture Your Flow.



    Take full control of your movement with our standing desk handset. Featuring responsive up/down buttons and three programmable memory keys, you can instantly switch between your favorite sitting, standing, and collaboration heights with a single touch. The integrated real-time digital display keeps you informed with precise, millimeter-accurate height feedback.

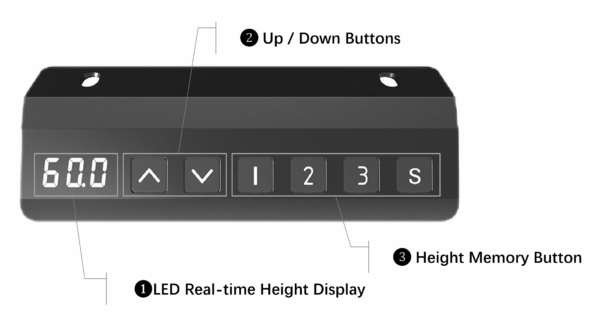

    Handset Type Function Description

    ① LED Real-time Height Display



    ② Up/Down Buttons: Press and hold ▲ and ▼ for 5 seconds. When the screen displays LOC, child lock is activated and height adjustment is disabled. Hold both keys again for 5 seconds to unlock.



    ③ Height Memory Button: With the desk stationary, press the S button. The handset will display S-. Then press 1, 2, or 3 to save the current height to the selected button.
    The handset can store up to 3 height positions, which are repeatable and retained after power off.







    Power Plug

    We fully understand the inconvenience caused by the wide variety of power socket standards across different regions. Please kindly let us know your location or the required power plug type, and we will provide the matching plug to comply with the regional electrical standards for you and your customers.

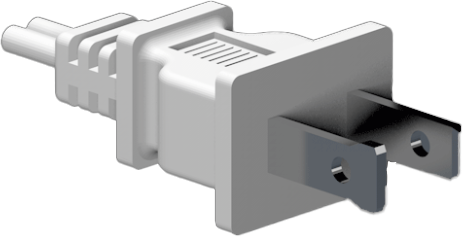

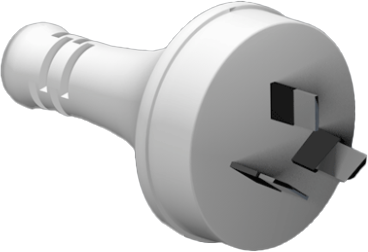

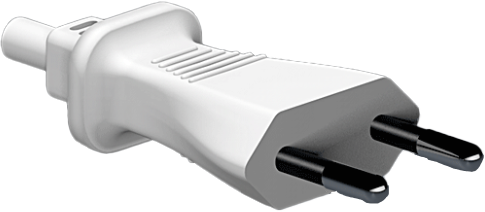

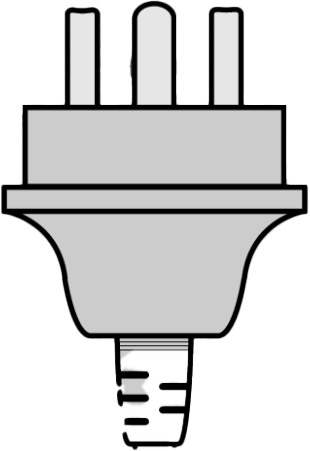

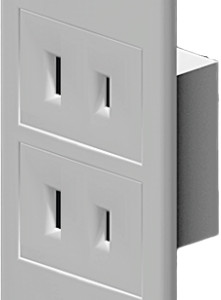

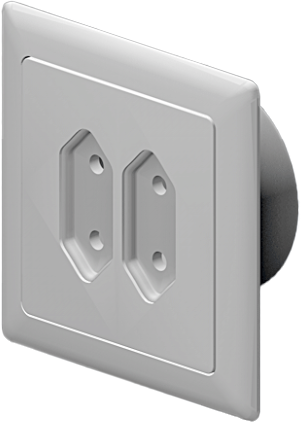

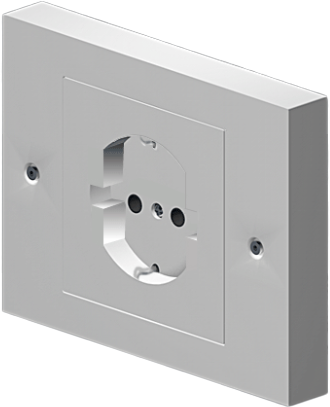

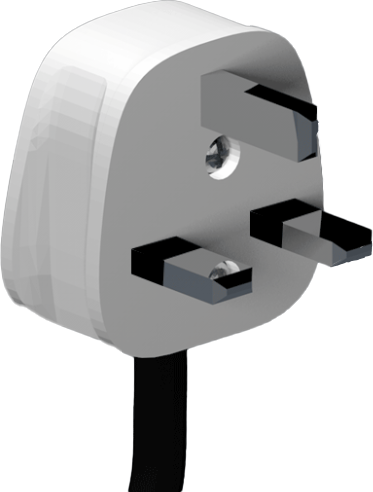

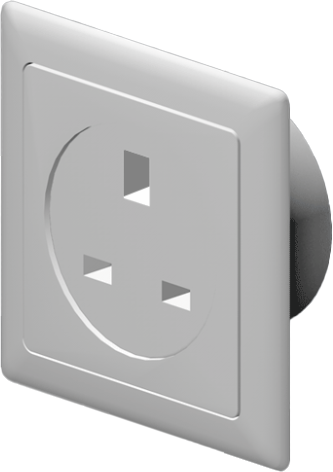

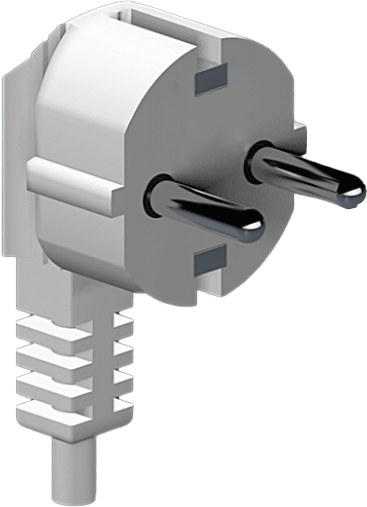

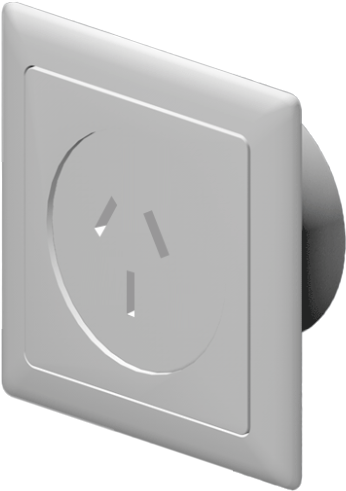

    Plug Type A Plug Type C Plug Type F Plug Type G Plug Type I Plug Type Others
    North and Central America, Japan Europe, reland, Cyprus and Malta Germany, Austria, the Netherlands and Spain among others UK, Ireland, Cyprus, Malta, Malaysia, Singapore, Hong Kong Australia, New Zealand, Papua New Guinea, Argentina Other plug requirements? Contact us.

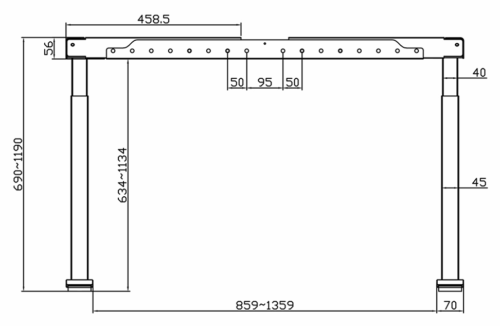

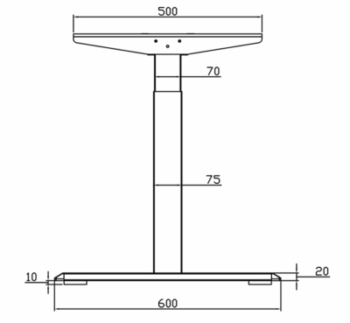

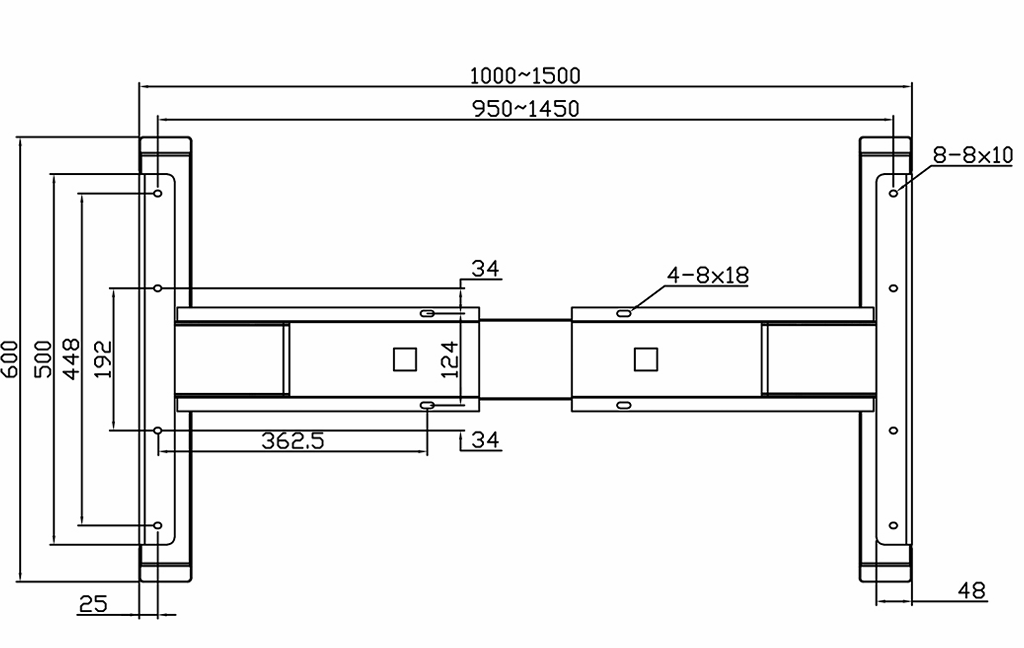

    Three-View Drawing

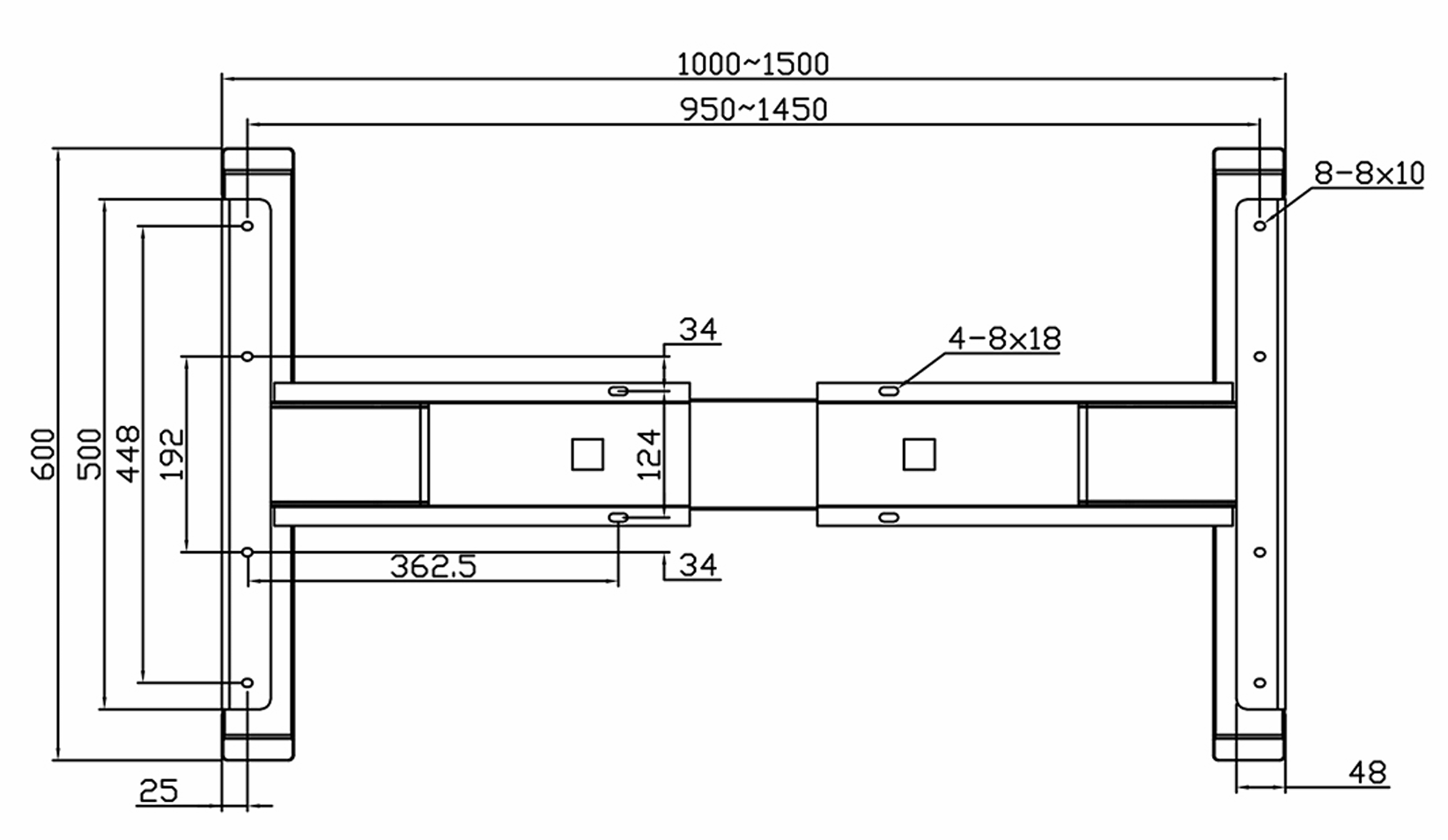

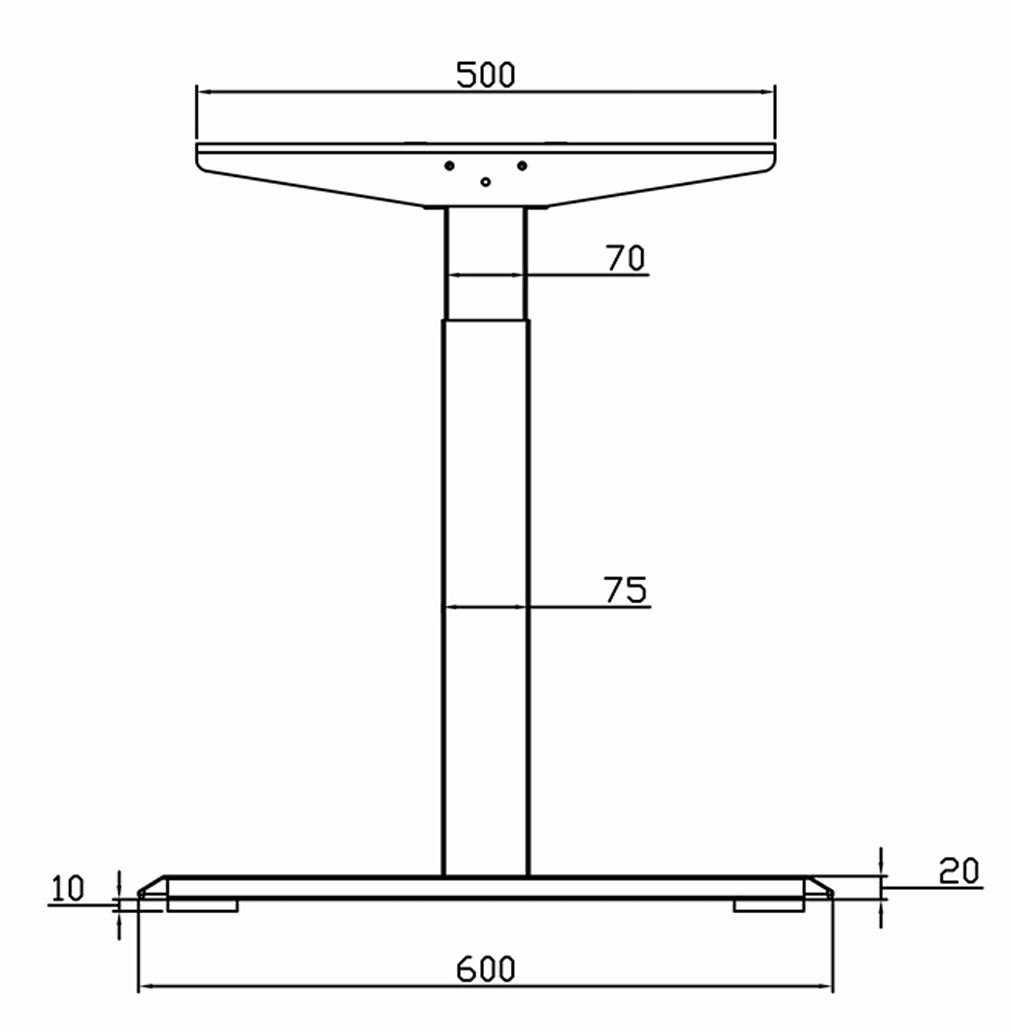

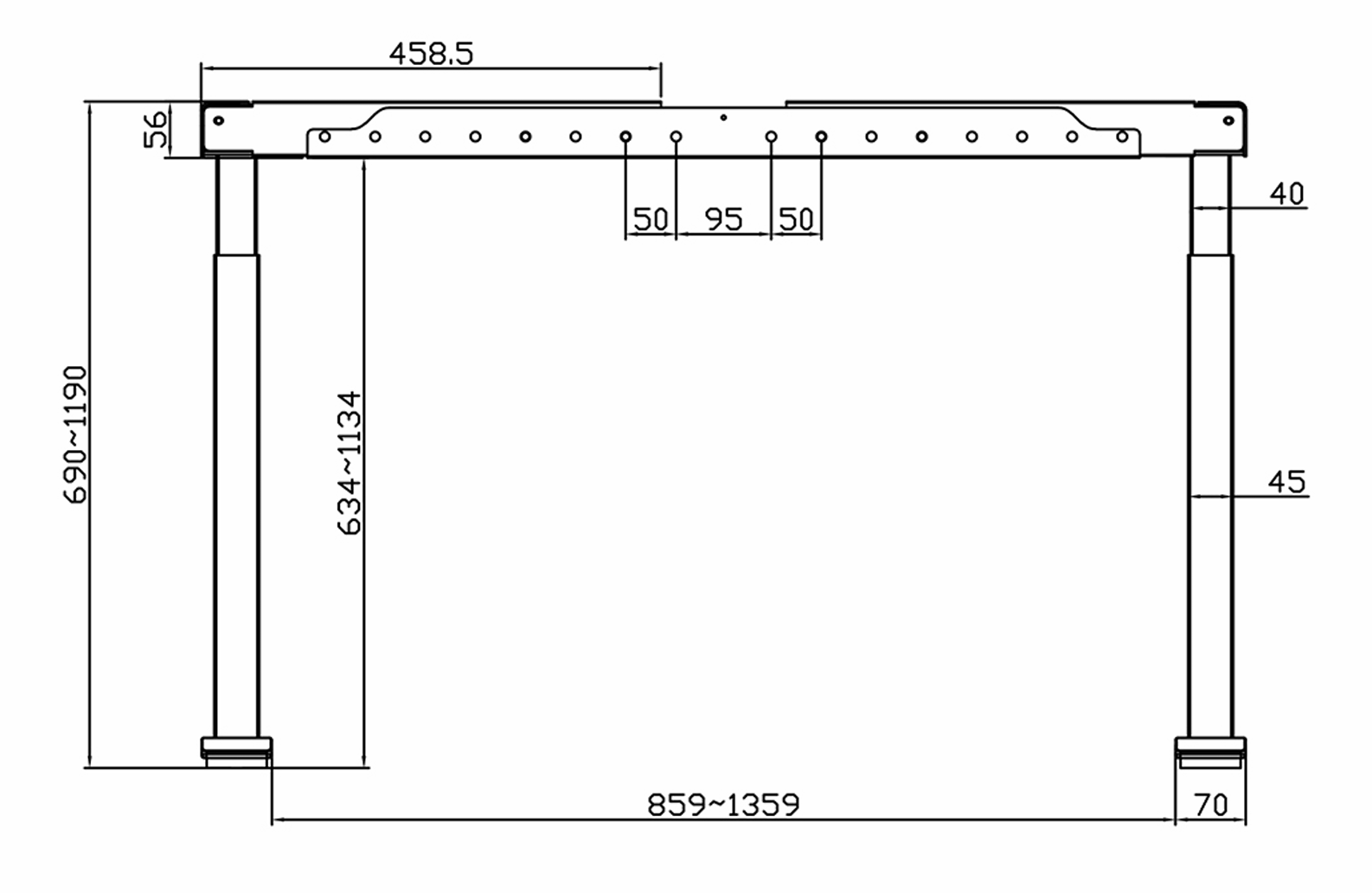

    FrontView SideView TopView

    Click the image to view it in a larger size.



    Lifting Speed

    Lifting Capacity

    100kg

    Lifting Colum

    2stages
